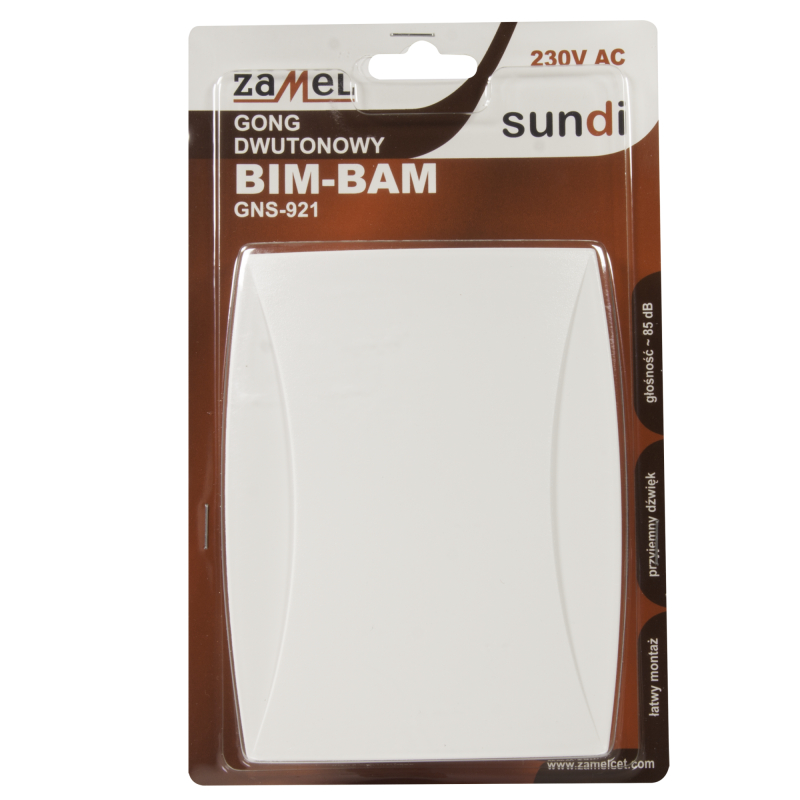

Electric bell 230V GNS-921 85dB two-tone melody Gong BIM-BAM ZA0001 ZAMEL

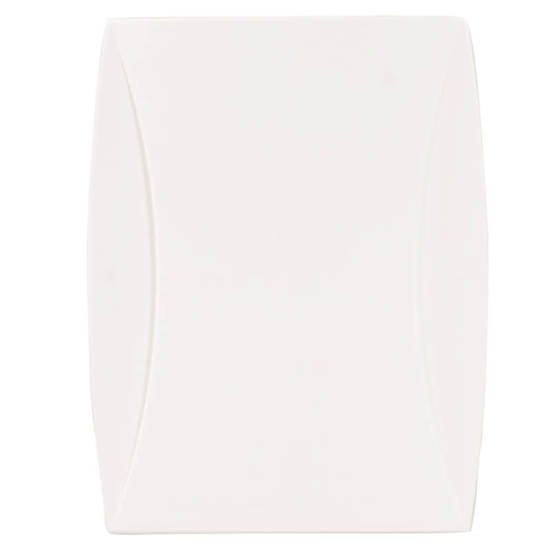

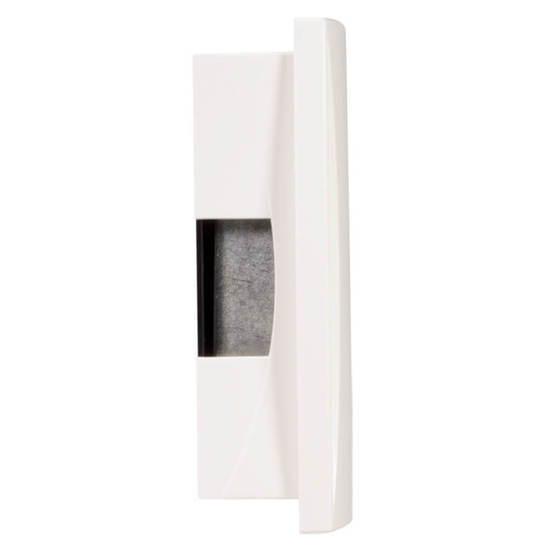

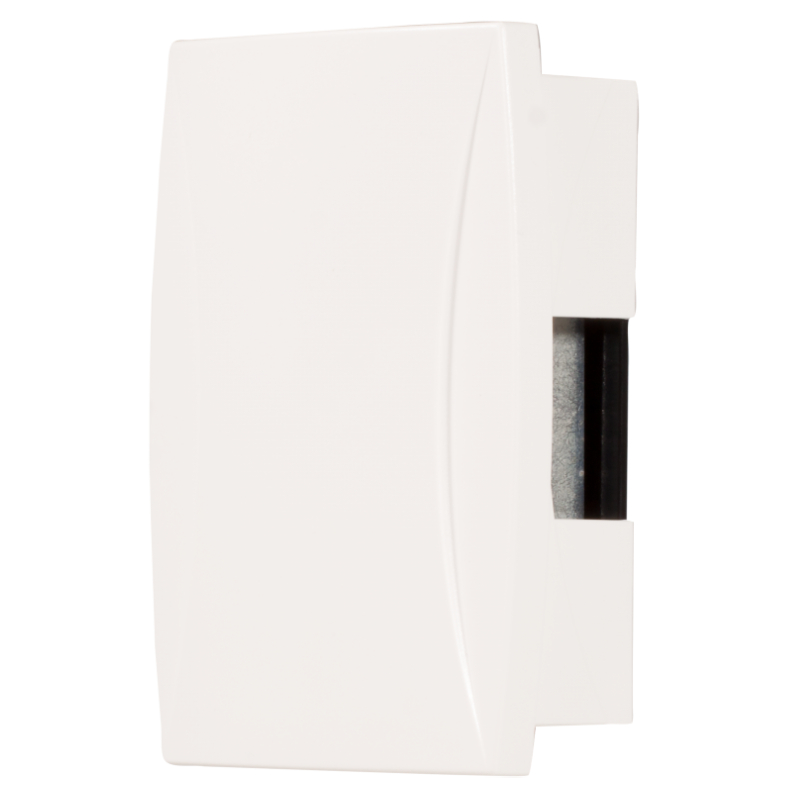

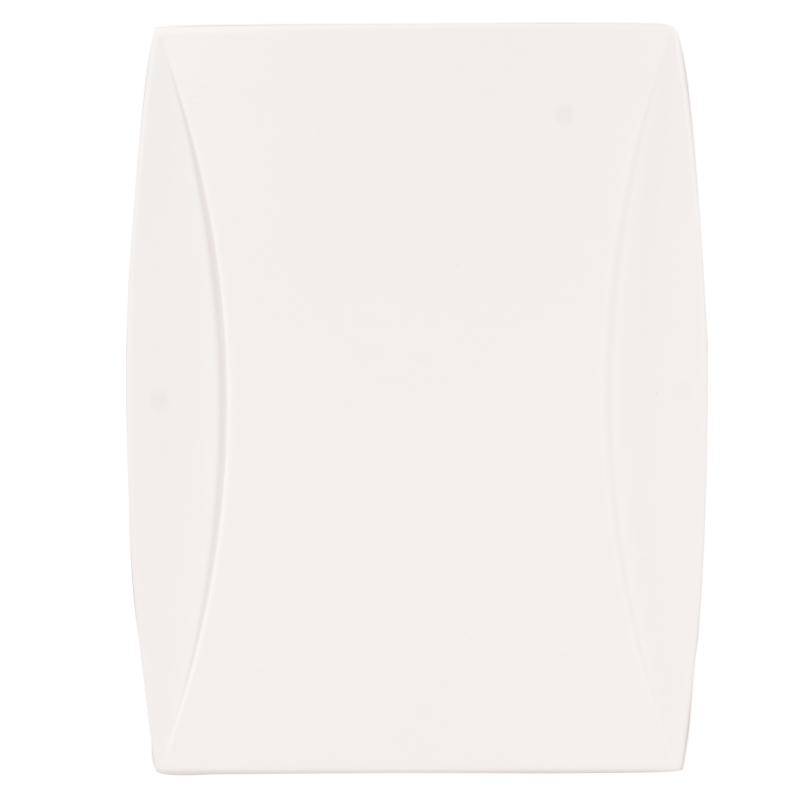

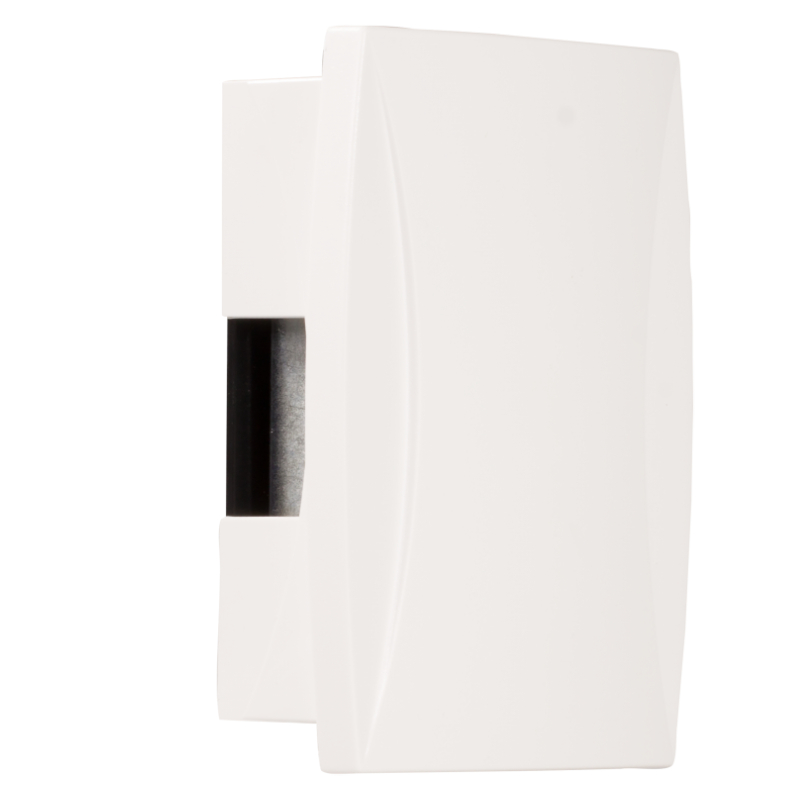

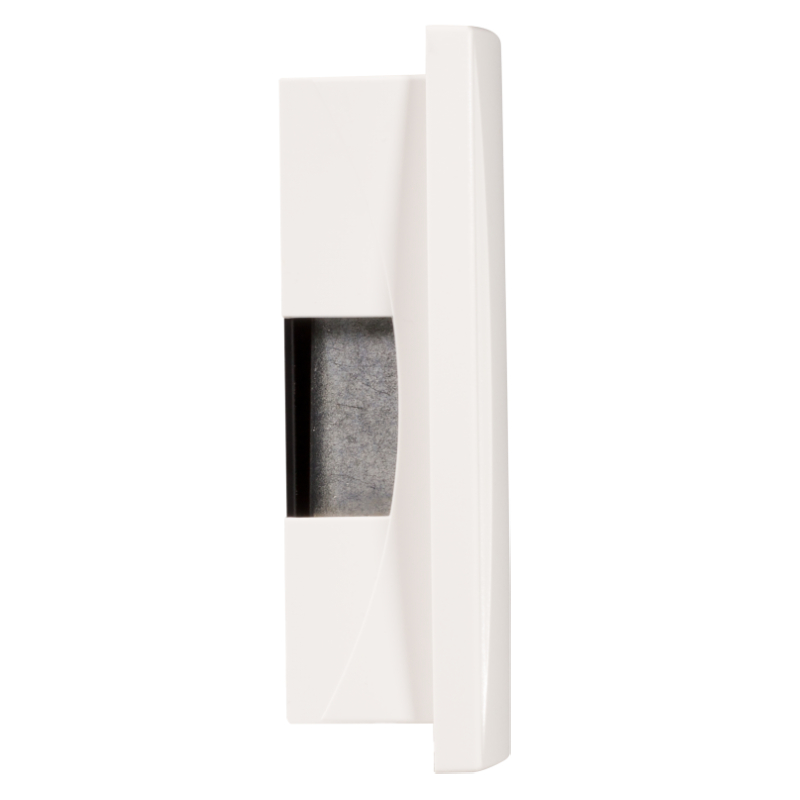

ZAMEL model GNS-921 electromechanical doorbell, designed for use in indoor spaces that are equipped with a 220 VAC bell installation.

Specifications:

• Nominal voltage: 220 V
• Sound: two tones of BIM-BAM
• Volume: 85 dB
• Material: plastic
• Dimensions: 14 x 11 cm

Installation instructions:

• Before starting work on connecting the installation, you should turn off the 230 V voltage supplying the bell installation. With the help of a suitable measuring device, you should make sure that there is no voltage in the bell installation.
• Using a flathead screwdriver, pry up the tab on the bell cover and remove it.
• Determine the mounting location of the bell on the wall and drill two holes corresponding to the mounting holes in the base of the bell. You should pay attention to the vertical position of the bell (marked on the base).
• Insert dowels into the holes.
• Install a screw in the upper dowel and screw it so that it protrudes a maximum of 5 mm.
• Through the round hole in the base of the bell, pull the wires of the bell installation.
• Attach the base to the protruding top screw.
• Attach the base using the second screw, installing it in the lower dowel.
• Strip the insulation from the ends of the bell installation cables to a length of 15 mm.
• Press the terminal pressure lever and insert the ends of the wires into the terminal holes, then release the lever.
• You should check the correct installation of the cables by gently stretching them. If necessary, you should repeat the previous activity.
• Install the bell cover.
• Switch on the 230 V AC supply voltage of the bell installation.
• Check the operation of the bell by pressing the bell button.
