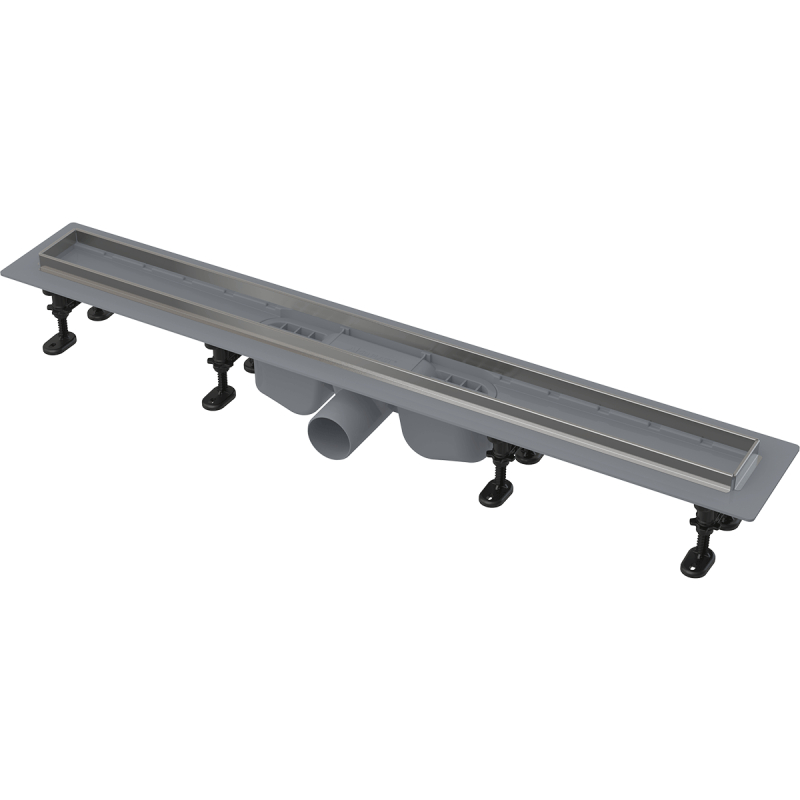

Linear floor siphon for bathroom APZ22 - 750mm PVC with stainless steel edge for perforated grid Optimal

Linear floor siphon for bathroom APZ22-750 by ALCAPLAST with a length of 750 mm. The siphon has a waste water pipe diameter of Ф50 mm and has a double drain system that guarantees a high flow rate of up to 63 l/min. To prevent the return of unpleasant odors from the sewer, the siphon is equipped with double protection - a water seal and a valve. The body is made of polypropylene filled with talc. It is resistant to mechanical, chemical and thermal damage.

The linear bath siphon is available without the grid included in the set. Compatible with all types of 750 mm long ALCAPLAST linear siphon grids - solid grids, perforated grids and grids for tile installation.

Technical characteristics:

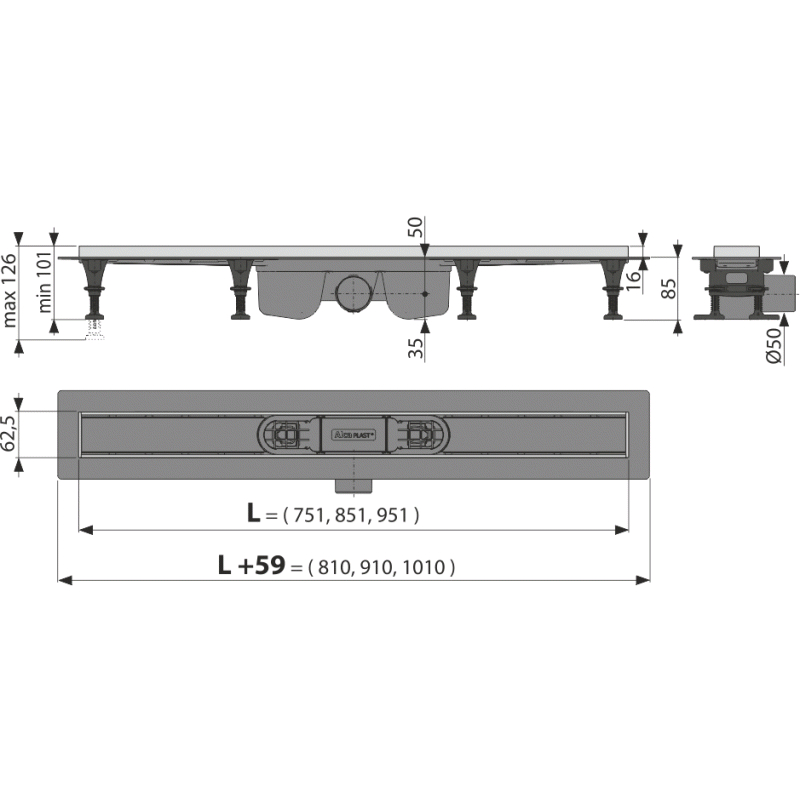

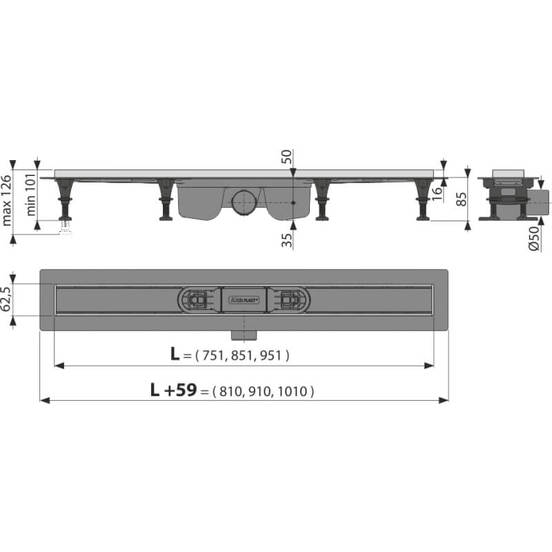

• Installation height of 85 mm
• Adjustable plastic anchor feet 0-27 mm, allowing quick and convenient installation, including the precise adjustment to the required level
• High resistance against chemicals
• Load class K3: 300 kg
• Secure connection to the building waterproofing system
• Combined odor trap providing protection against unpleasant odors from the sewer even after the water from the siphon has dried
• The high flow rate is achieved by the double drain system in the two hydraulic locks

The set includes:

• Self-adhesive tape for quality waterproofing
• Fixing kit: screws and dowels
• Self-adhesive waterproofing tape
• Height adjustable legs
