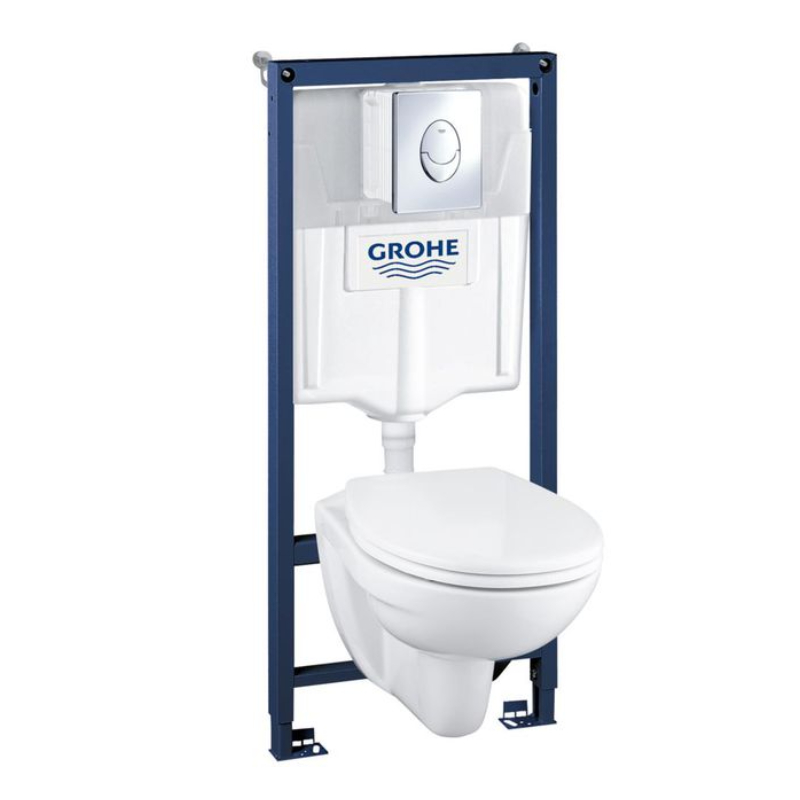

Built-in structure set, Grohe Solido 39192000

Built-in structure with suspended toilet bowl and slow-fall seat of the GROHE brand. The frame comes complete with mounting hardware and a SKATE AIR button.

Features of the GROHE SOLIDO set:

• Embed structure 38528001
• GD2 kettle
• Small inspection hole
• Element height: 1.13 m
• For installation in dry walls and in front of a wall
• Bearing steel frame, powder coated
• Suitable for lining with plasterboard
• Fixed inlet and outlet fittings
• Possibility of height adjustment
• Fasteners
• TUV Certificate
• Two mounting bolts for a console toilet bowl
• Fasteners for ceramics
• Distance between bolts: 180/230 mm
• Outlet pipe f90 mm with the possibility of depth adjustment
• Reducer f90/110 mm
• Input and output set
• Pot with water discharge control 2.6-9 l.
• Factory settings of the cistern 3-6 l.
• Pneumatic emptying mechanism with two functions: 2 stages and start/stop mechanism
• Water supply from left, right and rear
• Noise isolation class 1 DIN tested
• Insulated against condensation
• Integrated angle stopcock 1/2"

Structure button GROHE SKATE AIR 38505000

• With two stages and start/stop function
• For pneumatic valve AV1
• Vertical and horizontal installation
• Size: 156 x 197 mm
• ABS Material
• GROHE StarLight - chrome
• GROHE EcoJoy - technology to reduce water consumption
