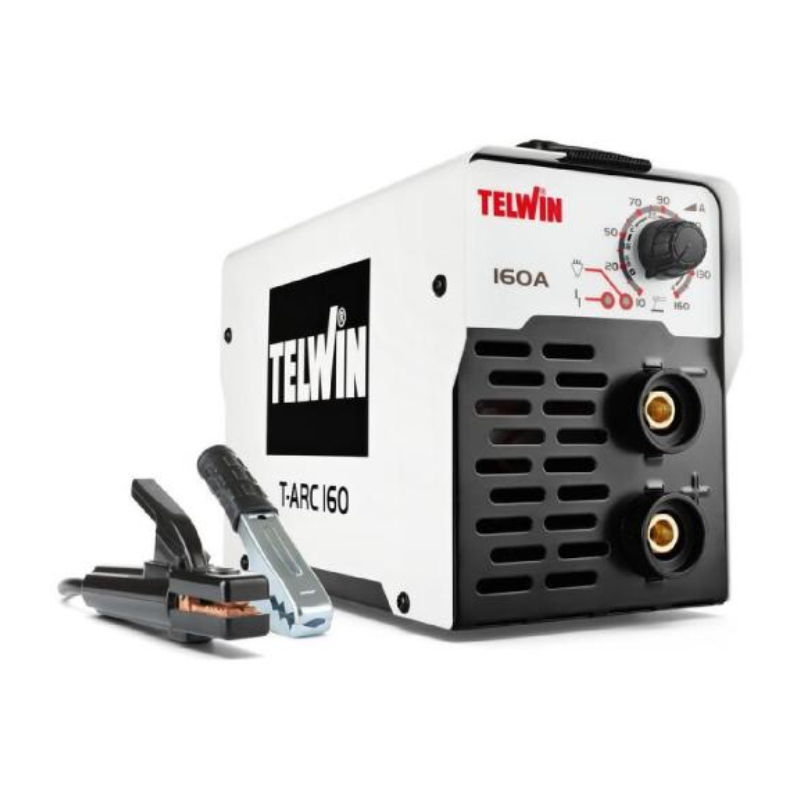

Inverter welding machine T-ARC 160 ACX - 160A, 1.6-4.0mm, with non-stick, hot start, arc flash, overvoltage protection

Inverter welding machine T-ARC 160 ACX of the brand TELWIN. It is an electrode and direct current (DC)welding machine. It is possible to use a wide range of electrodes with a diameter of 1.6 to 4.0 mm: rutile, basic, stainless steel, cast iron, etc.
The device is compact and light, with high stability of the welding current, regardless of fluctuations in the mains voltage. It has arc boosters, anti-stick hot start and protections. Comes complete with welding accessories.

Technical parameters:

• Supply voltage: 230 V, 50 / 60 Hz
• Rated current: 10-160 A
• Maximum current: 140 A at 20%
• Direct current: 70 A
• No-load voltage: 72 V
• Max. absorption power: 4.5 kW
• Absorbing power at 60%: 2 kW
• Generator operation: 6.0 kW
• Fuse: 16 A
• Degree of protection: IP21
• Electrode diameter: 1.6-4.0 mm
• 75% DC at 160A
• Dimensions: 280 x 125 x 180 mm
• Weight: 4 kg

Equipment:

• Clip for electric holder
• Ground clamp
