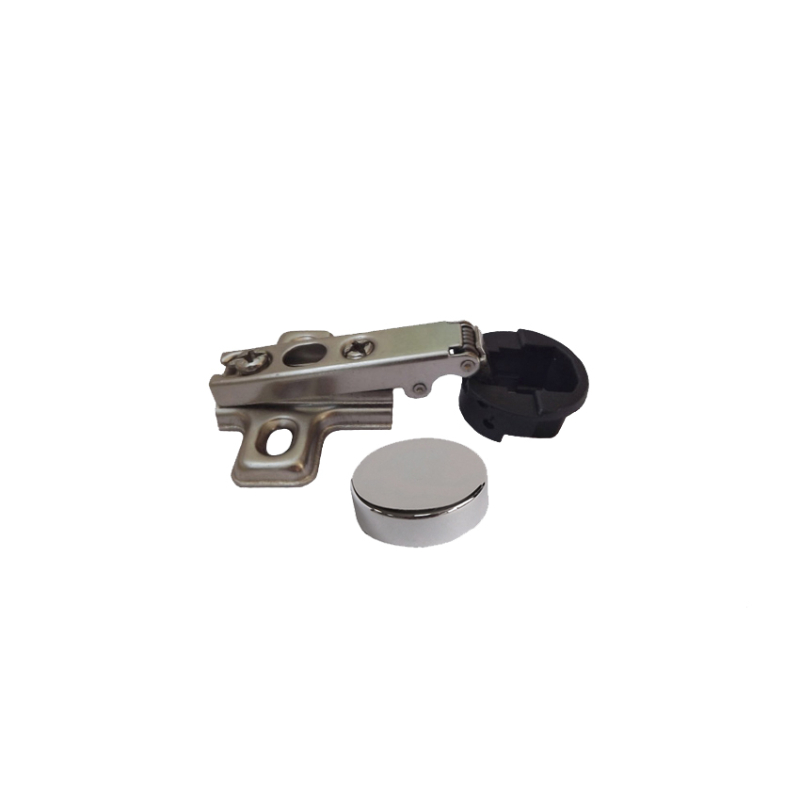

Low shoulder hinge - for glass, with cap

The LOTOS low arm hinge is characterized by an opening angle of 95°. It is made of iron, with a nickel coating that protects against corrosion. It has high strength and beautiful exterior design. The cup is plastic and is designed for glass panels with a thickness of 3 to 6 mm. The cap is plastic in chrome color and diameter F 32 mm.

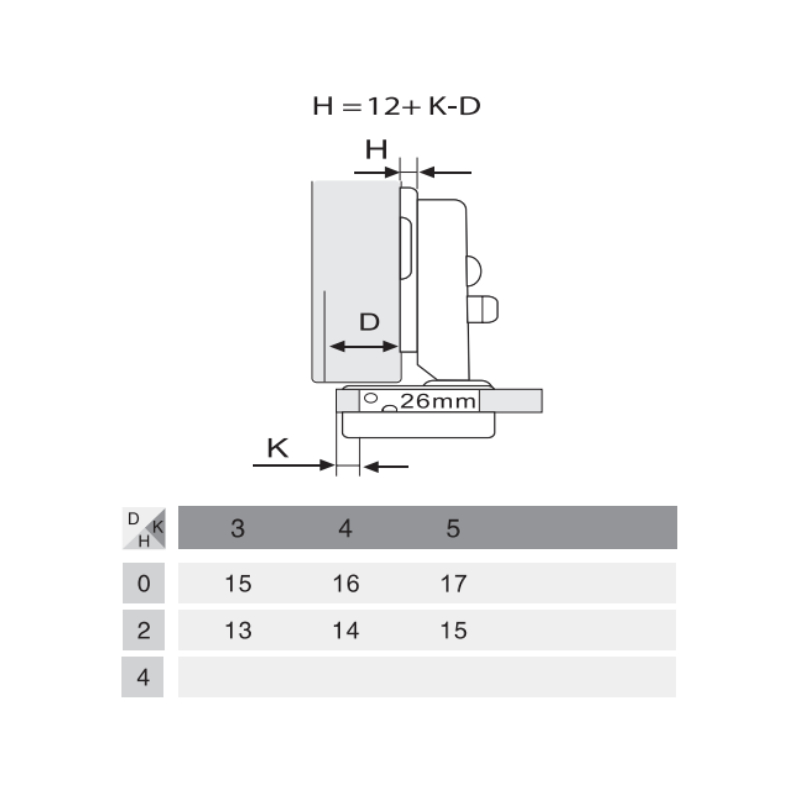

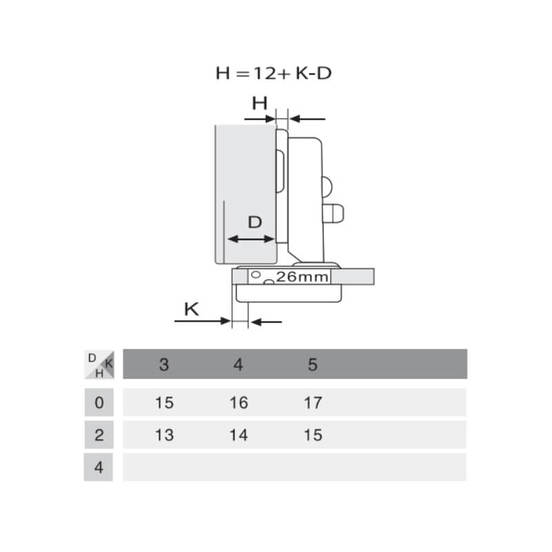

Designations for hinge Ф 26mm:

• H: base height
• D: wooden panel on the page
• K: distance between the edge of the door and the holes for drilling the cup
• A: distance between the door and the side panel
