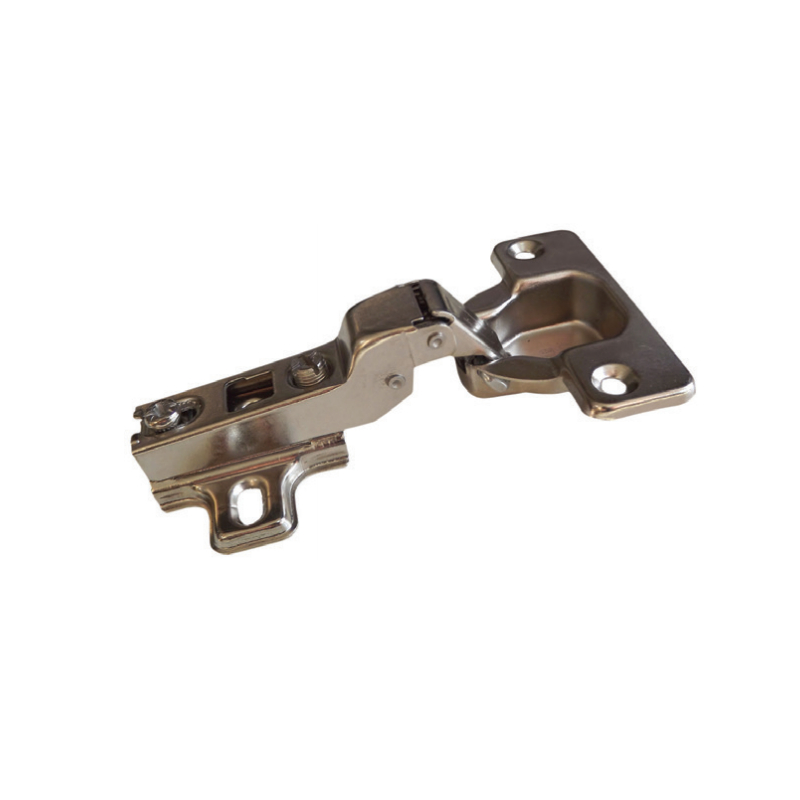

Hinge middle shoulder - ejector

The hinged middle shoulder hinge of LOTOS is characterized by an opening angle of 105°. It is made of metal, with a nickel coating that protects against corrosion. It has high strength and beautiful exterior design. The product allows easy and fast fixing on various surfaces.

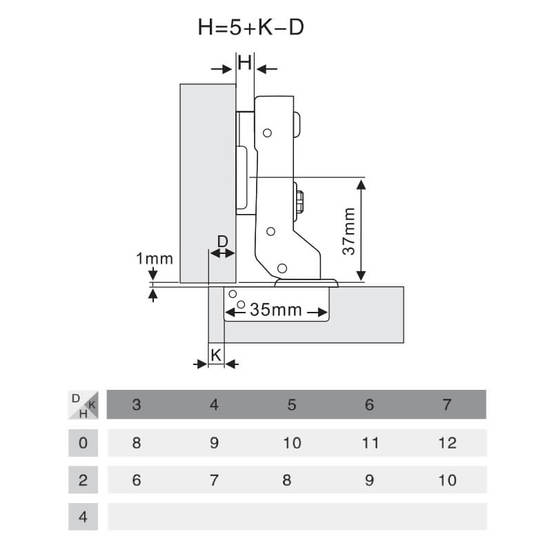

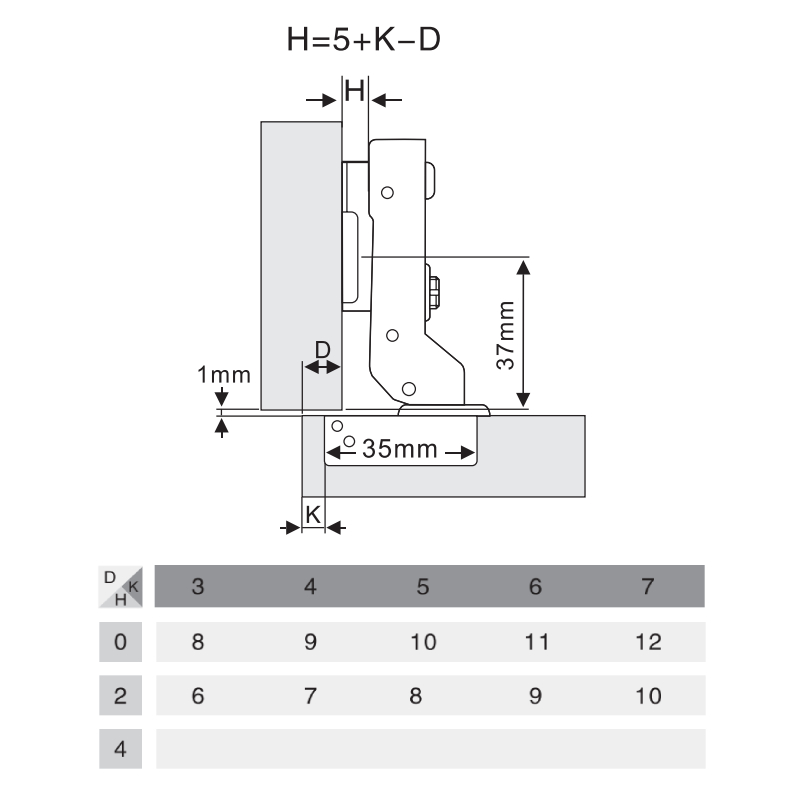

Designations for hinge Ф 35mm:

• H: base height
• D: wooden panel on the page
• K: distance between the edge of the door and the holes for drilling the cup
• A: distance between the door and the side panel
