Winch with chain CHH020 - 2 tons x 3 meters

The chain winch, model CHH020 of the H-LIFT brand is a high-quality manual chain mechanism with a compact and light construction. It is intended for use in industry during repair or installation, as well as in need of an additional lifting mechanism. It is made with galvanized and high-strength hardened chain, class 8. The product is manufactured in accordance with standard EN 13157.

The two hooks rotate 360 °. When the hook is overloaded, it bends, but cannot be broken. The hooks and drive coels of the load chain are made of high quality steel. They are forged and heat treated to achieve high wear resistance. The guide rollers of the load chain ensure its perfect position regardless of the angle of inclination of the hoist.

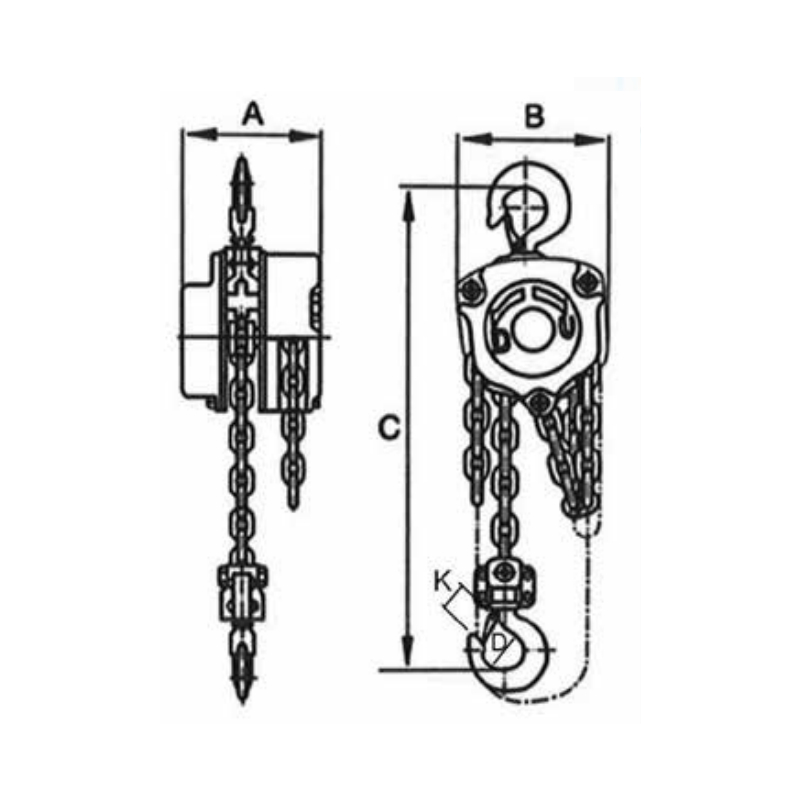

Dimensions:

• A: 140mm
• In: 170mm
• C: 459mm
• Chain size: 8 x 24 mm
• Load capacity: 2000 kg
• Lifting height: 3 m
