Linear siphon for bathroom Ф50mm with grid for installation of a tile of 750mm APZ13-DOUBLE9-750

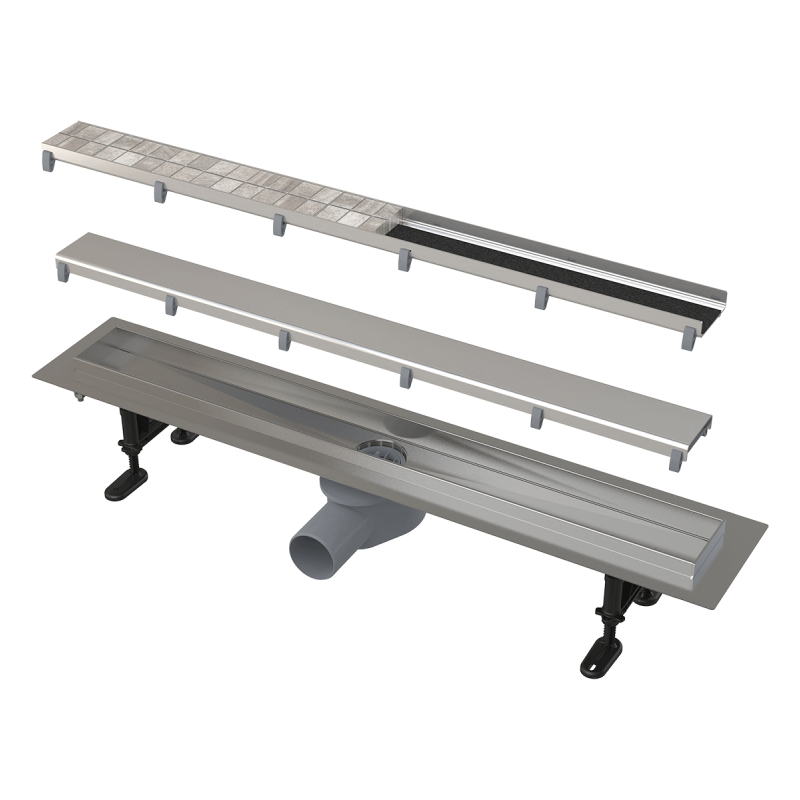

Linear floor siphon for bathroom APZ13-DOUBLE9-750 by ALCAPLAST, made of stainless steel (hardened by etching, passivation and electrochemical polishing) with a diameter of the wastewater pipe Ф50mm. The linear bathroom siphon is available complete with double-sided DOUBLE grille - on one side is a solid grille made of stainless steel, and on the other side there is a possibility to install tiles or waterproof wood up to 12 mm thick.

In the inner part of the body of the linear floor siphon for bathroom there is a slope, which guarantees perfect drainage without water retention. The maximum flow of the siphon is 50 l/min. Of course, the bathroom siphon also has a water seal, which guarantees protection from unpleasant odors.

The set also includes leveling plastic feet, which allow adjusting the height by 54 mm.

Specifications:

• Stainless steel linear siphon (hardened by etching, passivation and electrochemical polishing)1.5 mm, AISI 304, DIN 1.4301
• Slope in the inner part of the body of the siphon
• Installation height: 81 mm
• Adjustable height
• Self-adhesive tape for quality waterproofing
• The body of the hole is protected with a polystyrene insert
• The design is characterized by a double-sided DOUBLE grille - on one side is a solid grille made of stainless steel, and on the other side there is a possibility to install tiles or waterproof wood with a thickness of 12 mm
• 25 years warranty
• Anti-odor shutter: 30 mm
• Flow rate: 50 l/min
• Resistance of the odor trap to pressure: 380 Pa
• Diameter of the wastewater pipe: Ф50 mm

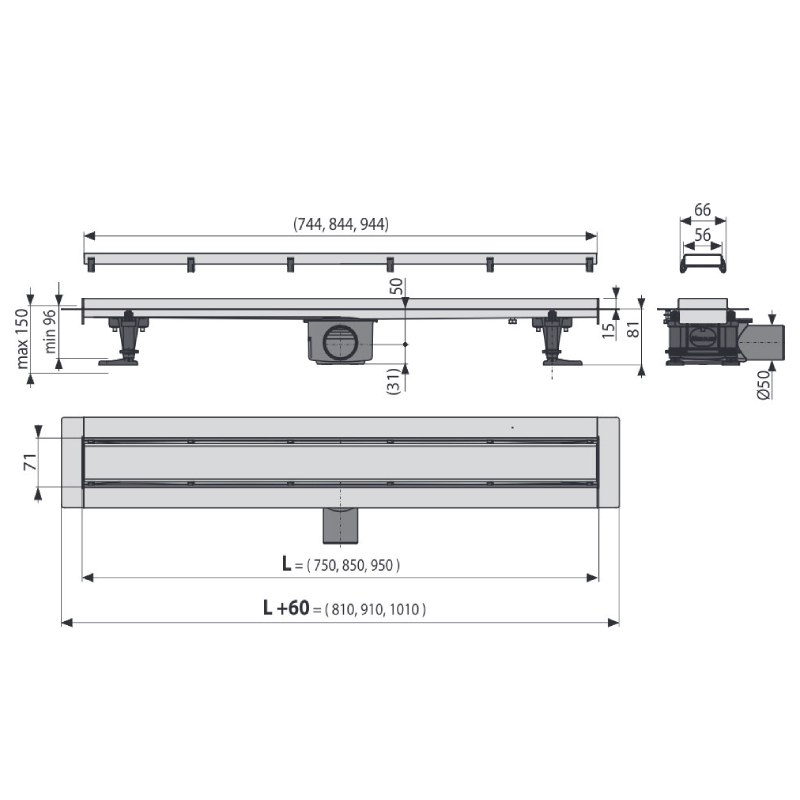

• Total mounting height: 96 - 150 mm
• Load class K3: 300 kg
