Axial pressure gauge ф50mm, 4bar

Axial water pressure gauge with a diameter of 50 mm. The device is designed for measuring pressure in various heating and water supply systems.
There is a wide variety of manometers with different applications and different ranges of measured pressure. This model is designed for water or other non-aggressive to its components liquids. Depending on the way of connection to the system, the manometers are axial (with rear terminal) and radial (with terminal at the bottom of the dial). This also determines the way they are installed.
Pressure reducing valves require a pressure gauge with a rear outlet to reduce the pressure. In other cases, a radial type of appliance is suitable.

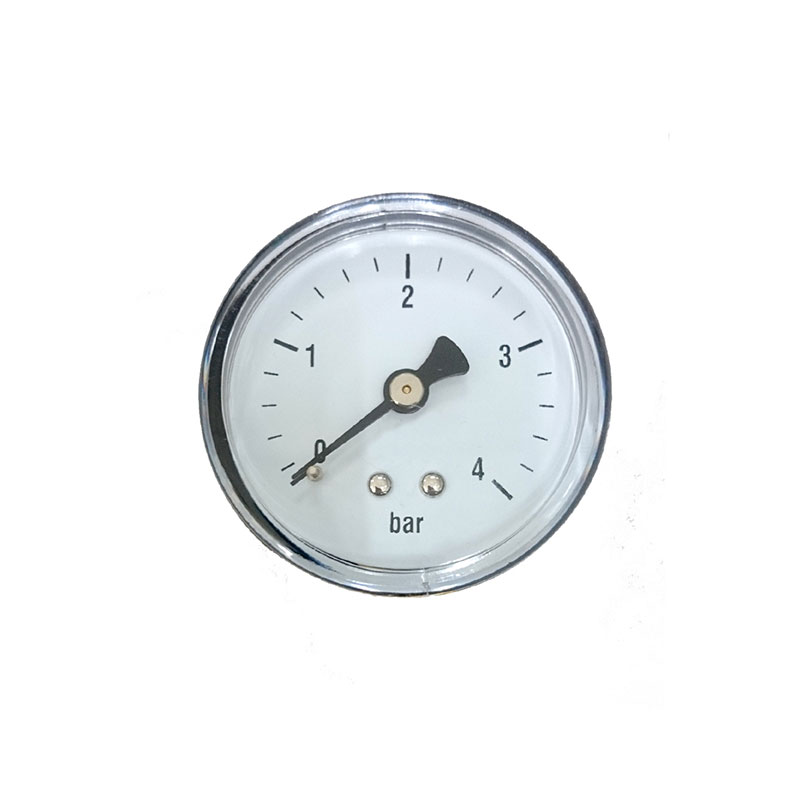

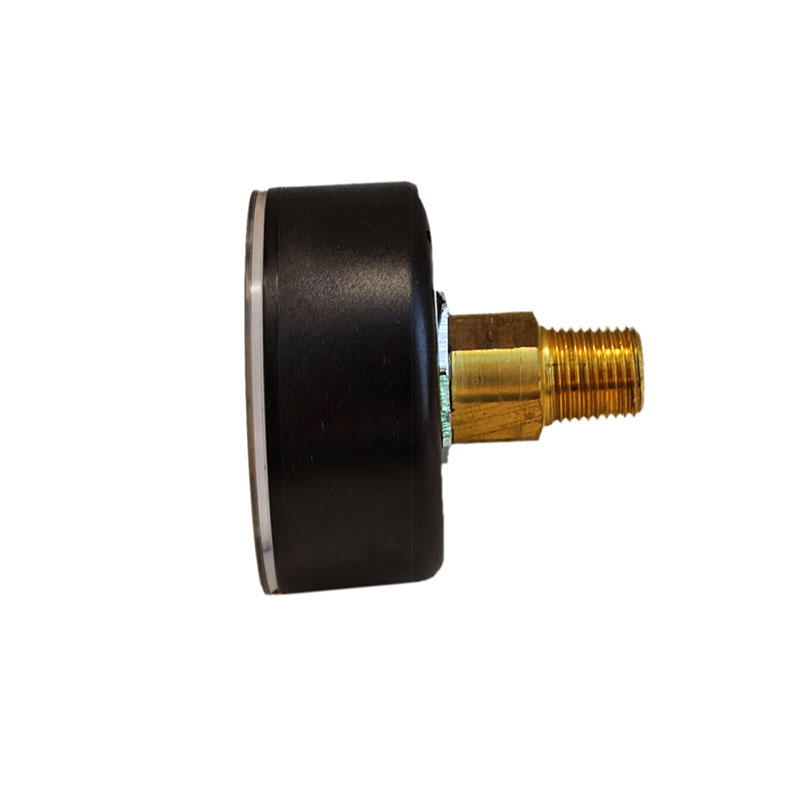

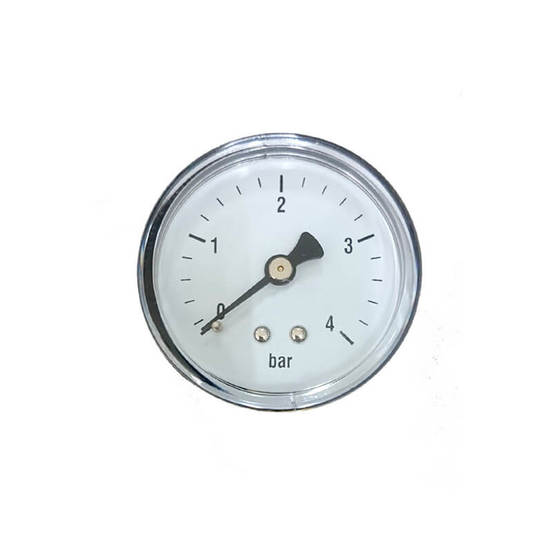

The connection size of this type of manometer is 1/4". The terminal is axial, located at the bottom of the device. The housing is made of plastic. The manometer is equipped with a tubular spring, analog dial and arrow. It reads pressure up to 4bar.
