Sewage shaft straight transitional, base bottom 160 / 400co / 160 Prakto

The purpose of sewer manholes is to provide access to canals or drainage systems. They are designed in places where a change in the pipelines in horizontal or vertical direction is envisaged.

The sewer system is a system of pipes and fittings made of PP Polypropylene, PVC-U. The system is designed for gravity sewerage, domestic (gray and black water), industrial and rainwater. Pipes and fittings have low weight, high resistance to aggressive water and a smooth inner layer, which creates optimal hydraulic conductivity. Water tightness of the connections - 0.5 atm.

Advantages:

• LEGO type construction: all elements - couplings, pipes are factory-fitted with sealing elements
• Pipelife duct shafts consist entirely of non-corrosive, unbreakable and stable plastic elements.
• The individual elements are of such dimensions that the different depths of the shafts that are needed are achieved in a very easy way.
• In its upper side, the system shafts can be equipped with various covers, including plastic, cast iron or telescopic, withstanding different loads of 1.5 tons. up to 4t.
• Very light material
• Easy installation and convenient transportation
• They are resistant to corrosion in alkaline, acidic or aggressive environments
• Lifespan: over 50 years

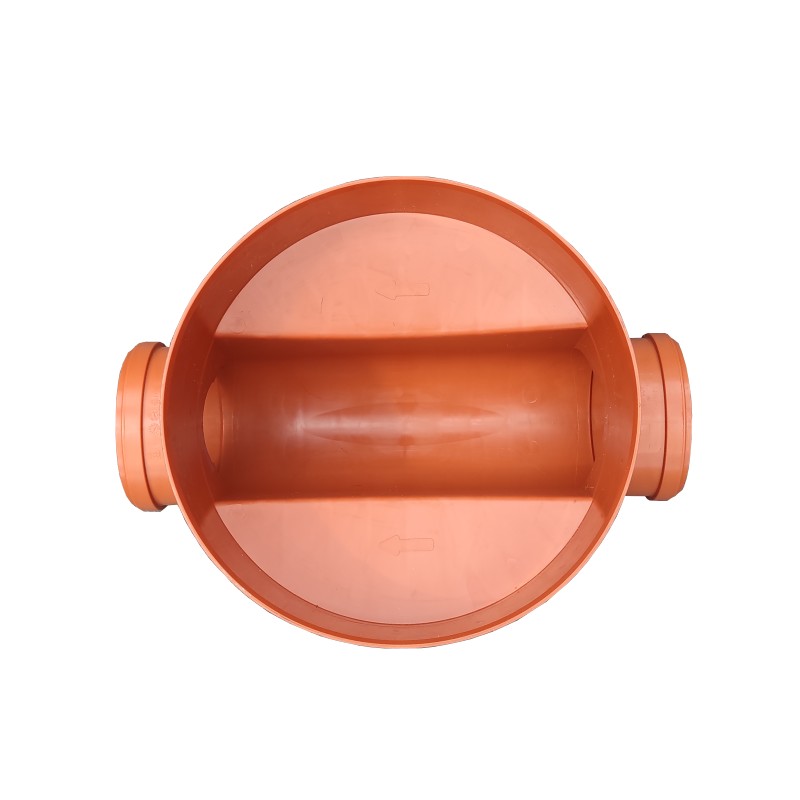

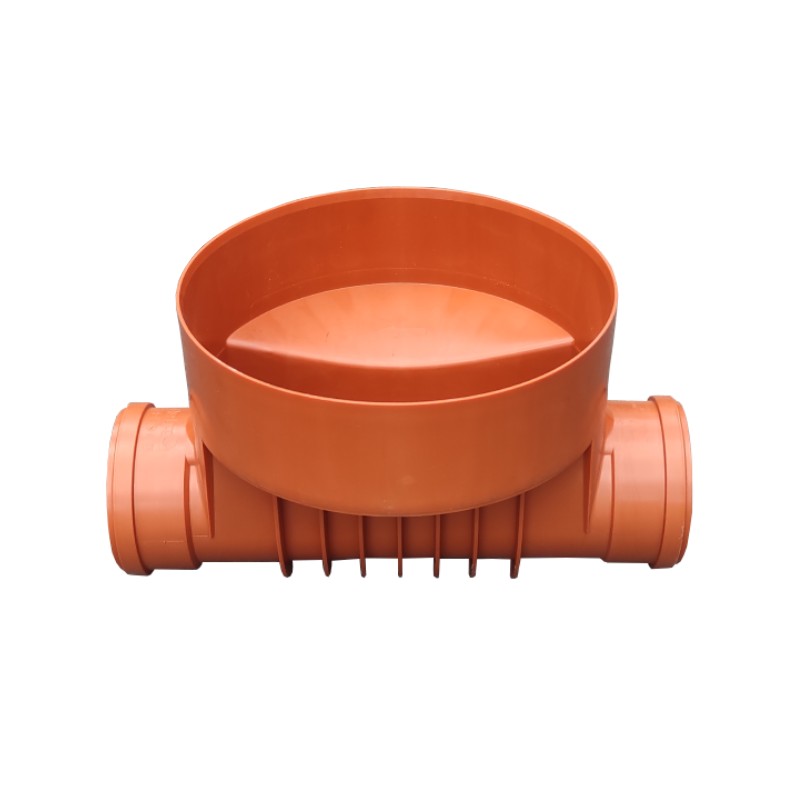

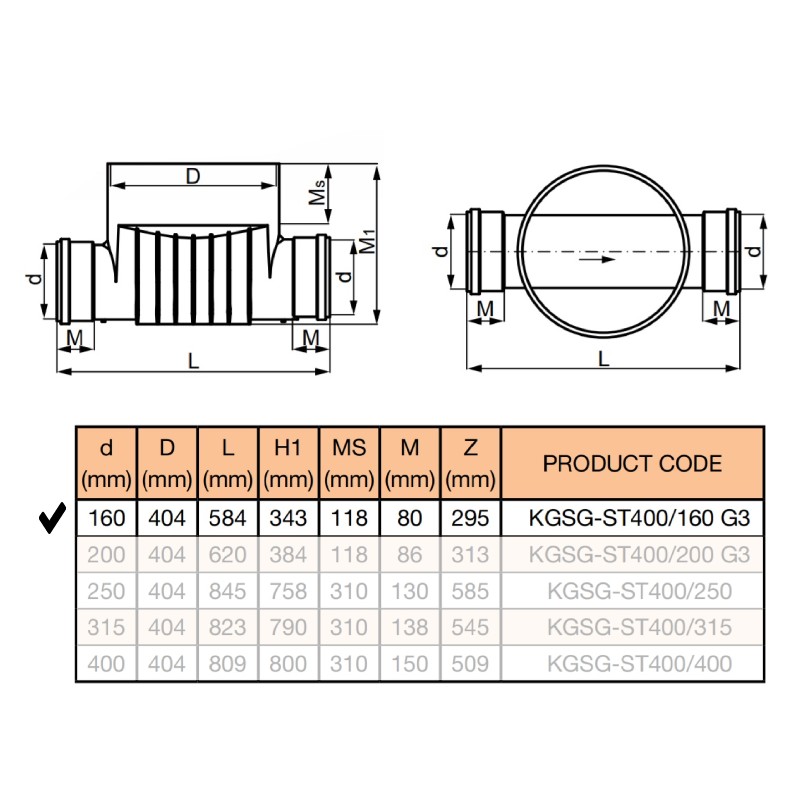

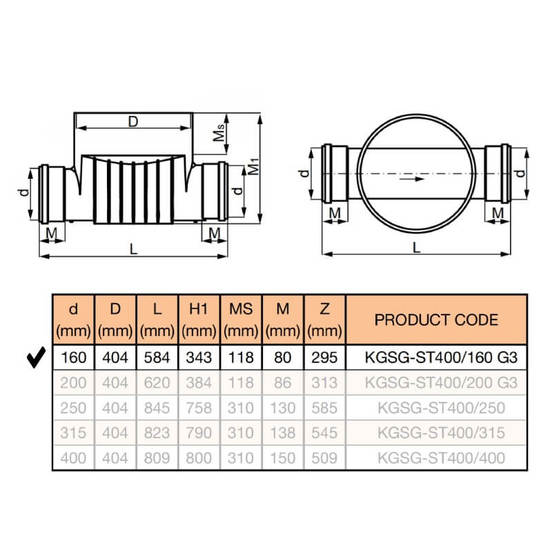

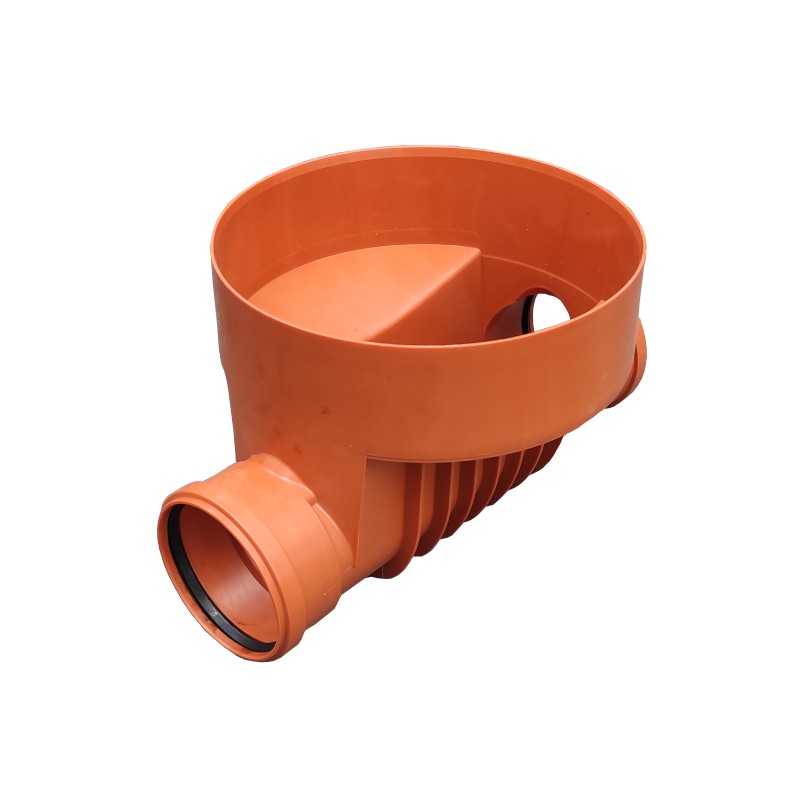

Characteristics of the collection shaft base/bottom:

• Type: ST (straight flow)
• 1 input, 1 output
• Inlet/outlet diameter: ф160 mm
• Diameter of the base: ф400 mm
• Material: PP Polypropylene, PVC-U
• Color: orange
• In accordance with standard: EN476, EN13598
